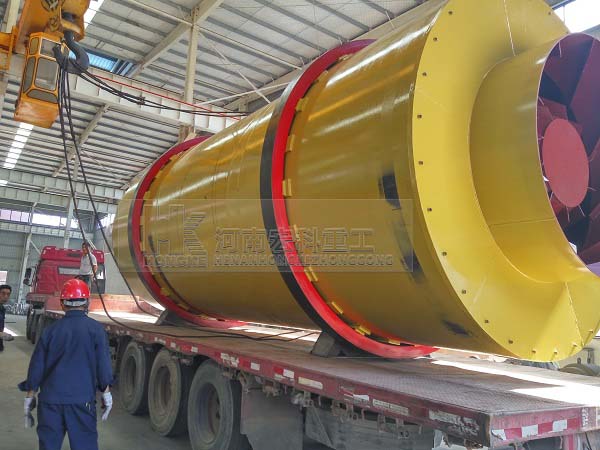

煤矸石烘干設備簡介
| 項目單位 | φ2.0×6m | φ2.5×6.5m | φ2.7×7m | φ3×7m | φ3.2×7m | φ3.6×8m | φ4.2×8.5m | |
| 外筒直徑 (m) | 2.0 | 2.5 | 2.7 | 3 | 3.2 | 3.6 | 4.2 | |
| 外筒長度 (m) | 6 | 6.5 | 7 | 7 | 7 | 8 | 8.5 | |
| 筒體容積 (m3) | 18.84 | 31.89 | 40.5 | 49.46 | 56.26 | 81.38 | 118 | |
| 筒體轉速 (rpm) | 3-10 | 3-10 | 3-10 | 3-10 | 3-10 | 3-10 | 3-10 | |
| 物料停留時間 (min) | 12-30 | 12-30 | 12-30 | 12-30 | 12-30 | 12-30 | 12-30 | |
| 物料初水份 (%) | 6-25 | 6-25 | 6-25 | 6-25 | 6-25 | 6-25 | 6-25 | |
| 物料終水份 (%) | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | |
| 最高進氣溫度 (℃) | 750-900℃ | 750-900℃ | 750-900℃ | 750-900℃ | 750-900℃ | 750-900℃ | 750-900℃ | |
| 生產能力 (T/H) | 礦渣 | 20-25 | 25-30 | 30-35 | 35-10 | 40-45 | 50-65 | 70-85 |
| 粉煤灰 | 10-17 | 17-21 | 20-25 | 23-27 | 25-30 | 30-45 | 45-63 | |
| 黃沙 | 20-27 | 25-40 | 27-45 | 30-45 | 35-50 | 55-75 | 75-99 | |
| 電動機型號 | Yr160m-4 | Yr132m-4E | Yr160m-4 | Yr160m-4 | Yr132m-5E | Yr160m-4E | Yr160m-4E | |
| 電動機功率 (kw) | 7.5×2 | 11×2 | 7.5×4 | 7.5×4 | 11×4 | 15×4 | 18.5×4 | |
| 減速機型號 | XWD-6 | XWD-6 | XWD-6 | XWD-6 | XWD-6 | XWD-8 | XWD-8 | |
| 減速機速比 (I) | 17-29 | 17-29 | 17-29 | 17-29 | 17-29 | 17-29 | 17-29 | |
| 設備重量 (T) | 25 | 32 | 35 | 38 | 43 | 57 | 77 | |
